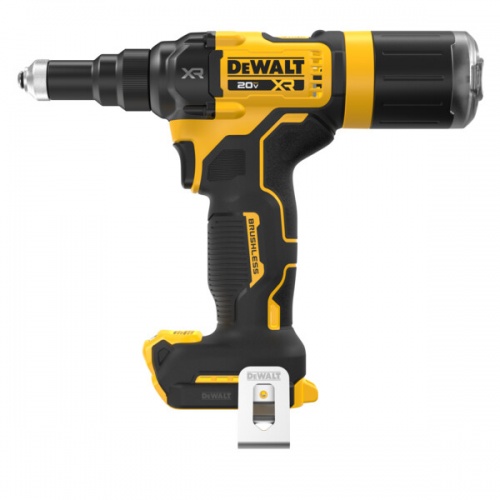

DCF403B - 20V MAX XR Brushless 3/16in Rivet Tool (Bare Tool)

Install aluminum, steel, and stainless steel blind rivets up to 3/16in with the 20V MAX XR Brushless Cordless 3/16in Rivet Tool. The brushless motor delivers up to 2,100 lbs of pulling force and has the capability to pull 800 rivets per charge. Other features like a a tool-free nose piece change and on-board nose piece storage help to maximize productivity on the jobsite. Battery and charger sold separately.

Features

• Compatible with multiple size rivets including 3/32, 1/8, 5/32 and 3/16in rivets
• Capable of pulling aluminum, steel, and stainless steel blind rivets
• On-board mandrel collector designed to collect and stores loose mandrels
• 0.98in stroke length for fastening rivets in one stroke
• Brighten work area with an integrated led work light for enhanced visibility in dimly lit areas
• Brushless motor delivers up to 2,100 lbs of pulling force for fastening rivets, including those made of stainless steel
• 800 rivets per charge to maximize productivity on the jobsite
• Designed for ease of use with tool-free nose piece changes and on-board nose piece storage

Specifications

• Product Length: 10.5 in
• Stroke Length: 0.98 in
• Product Height: 8.6 in
• Pulling Force: 2100 lbf
• Number of Pieces: 7
• Tool-Free Nose Piece Change: Yes
• Product Weight: 3.6 lbs

Includes

• (1) DCF403 3/16in Rivet Tool
• (1) 3/32in Nose Piece
• (1) 1/8in Nose Piece
• (1) 5/32in Nose Piece
• (1) 3/16in Nose Piece
• (1) Replacement Jaw Set
• (1) Belt Hook
